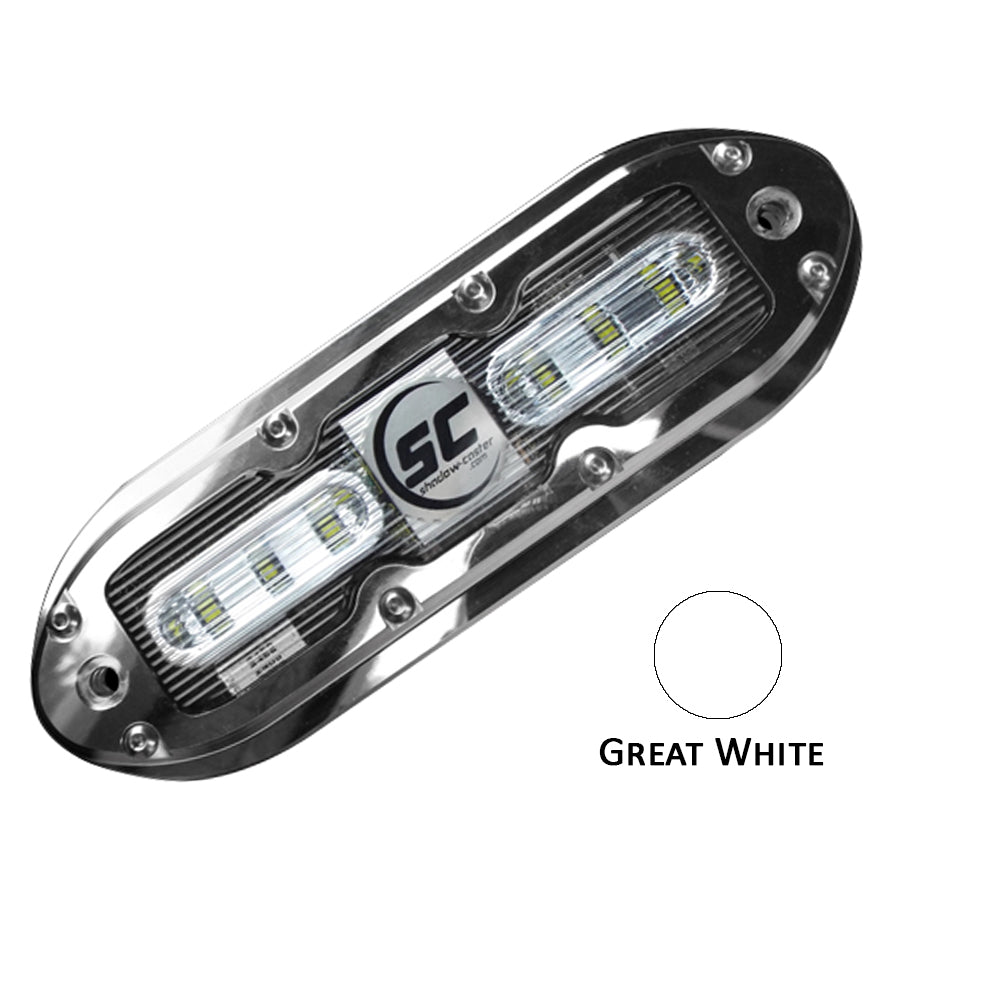

Shadow-Caster SCM-6 LED Underwater Light w/20' Cable - 316 SS Housing - Great White [SCM-6-GW-20]
Manufacturer Part Number: SCM-6-GW-20
UPC #: 855726005101
Category: Underwater Lighting
SCM-6 LED Underwater Light w/20' Cable - 316 SS Housing - Great White
With six LEDs, our mid-sized underwater light is the perfect addition to every vessel. Available in any of our five colors, the SCM-6 works with our Wireless Controller and Power Distribution Box for ease of use and installation.
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).
With Shadow-Caster underwater LED lights, there's no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
Our lighting solutions feature a low profile design that requires noalteration to the main hull
Wide Input Voltage Range
Shadow-Caster's underwated LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
Surge and Reverse Polarity Protection
Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.
- Size: 7.2" Length x 2.375" Width x 0.5" Height (183 x 60 x 13mm)
- Operating Voltage: 10 - 30 Volts DC with consistent brightness
- Current Draw: 2.1 Amps @ 12 Volts
- Internal high efficiency digital switching power supply
- 24 Watts of high efficiency LED light
- 40,000-Hour Lamp Life
- 120° light spread angle
- 316 Stainless Steel Housing with Polycarbonate Lens
- 20' (6M) Standard Cable Length
- 1-Year Warranty
- Made in the USA
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm, and Urethane which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Mounting Style: Surface
- Color: White
- Material: Stainless Steel
- Watts: 24w
- Voltage - Input Range (Volts): 10-30v
- Box Dimensions: 5"H x 5"W x 14"L WT: 2.2 lbs
- UPC: 855726005101
Quick Guide (pdf)
