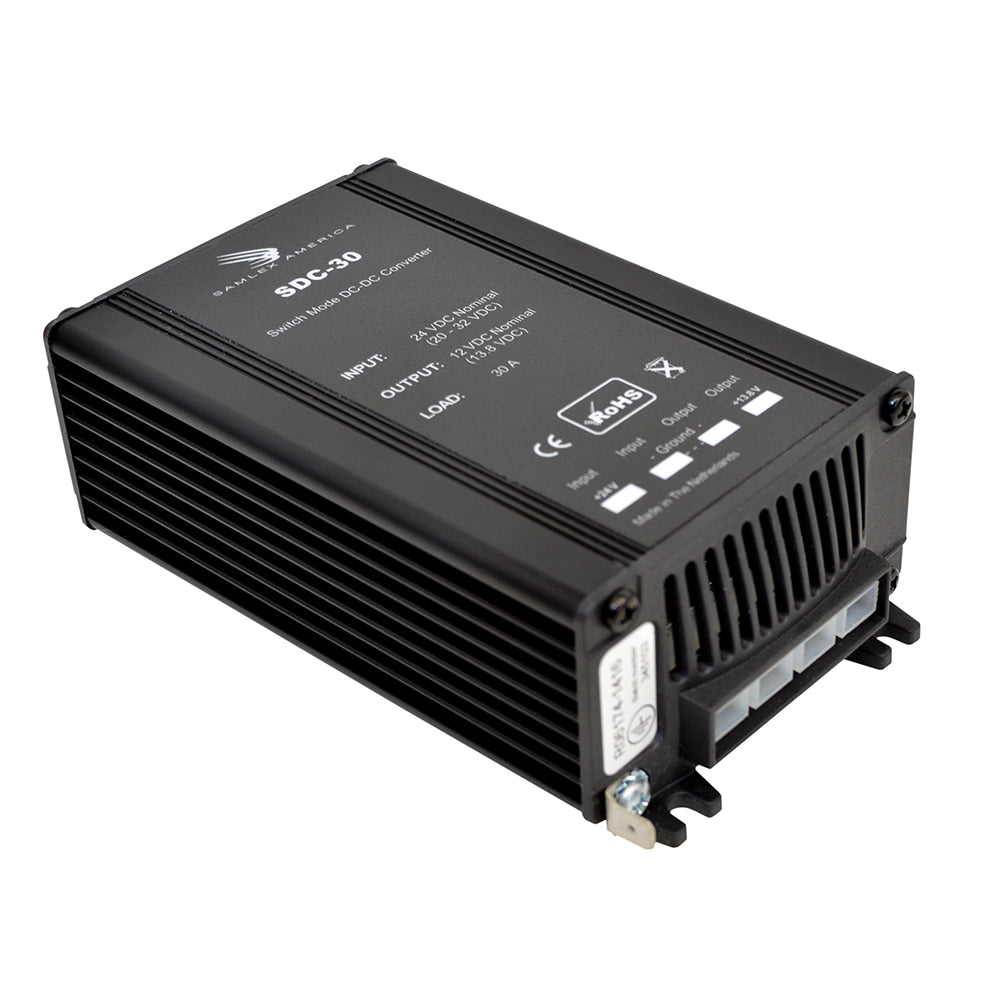

Samlex 30A Non-Isolated Step-Down 24VDC-12VDC Converter [SDC-30]

Save 20%
$198.90
$159.10
SKU 67249
Manufacturer Part Number: SDC-30
UPC #: 622988061745
Category: DC to DC Converters

30A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.

Features:

  • Advanced switchmode design
  • Mount in almost any location
  • Compact and light weight
  • Reverse polarity protection
  • High efficiency
  • Cycle by cycle current limiting circuit
  • Overvoltage protection
  • Short circuit protection

Specifications:

  • Input: 20-32 VDC
  • Output: 13.8 VDC
  • Amps: 30 Amps
  • Weight: 1.2 (lbs)
  • Weight: 0.54 (kg)
  • Dimensions: 6 x 3.5 x 1.9 (in)
  • Dimensions: 15.2 x 8.9 x 4.8 (cm)
  • Warranty: 2 Year Limited

Applications:

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
