Ronstan Series 40 Ball Bearing Block - Single - Universal Head [RF40100]

Name: Ronstan Series 40 Ball Bearing Block - Single - Universal Head [RF40100]
Brand: Ronstan
SKU: 55210
Price: 30.01 USD
Availability: InStock

by Ronstan

Save 15%

$35.31

$30.01

SKU 55210
Manufacturer Part Number: RF40100
UPC #: 9316800243891
Category: Blocks

Quantity

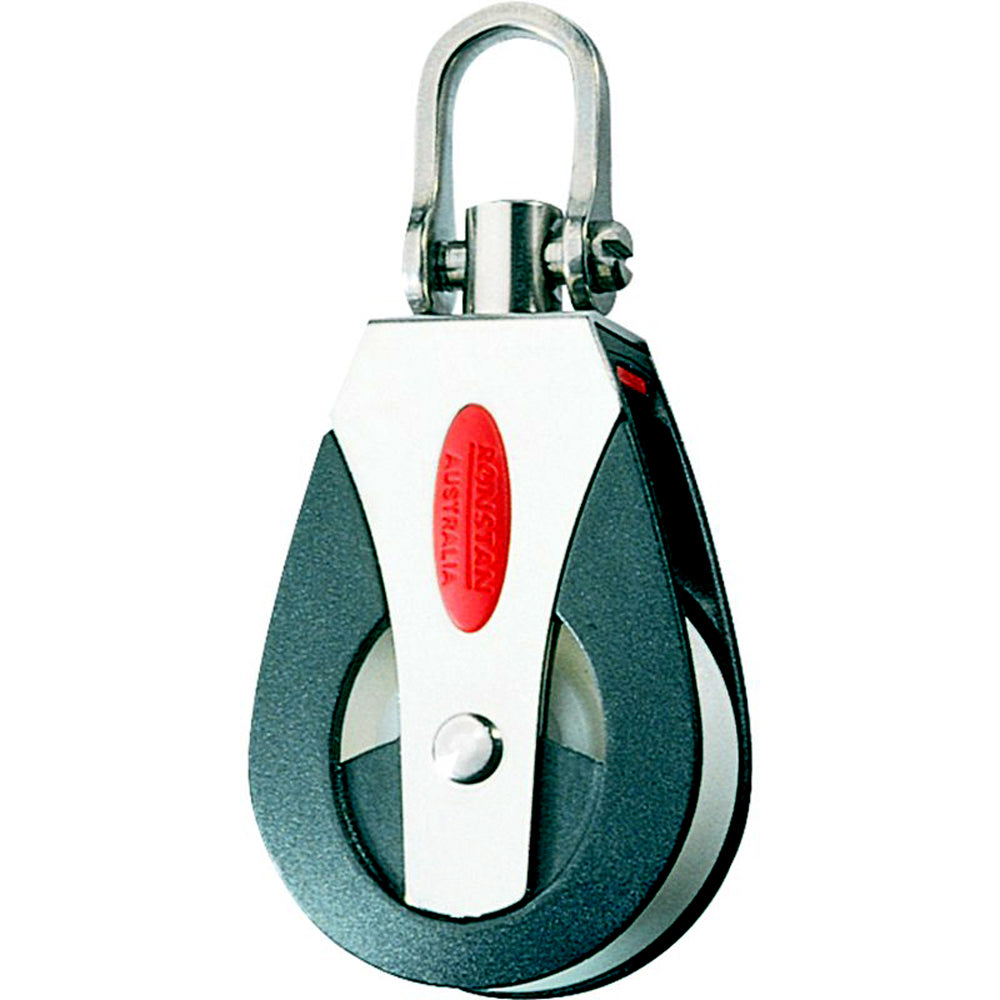

Series 40 Ball Bearing Block - Single - Universal Head

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock universal head can be fixed in either of two planes, or free to swivel as required.

Features:

Low friction Acetal or Torlon® bearing system
Lightweight
Cheek cut-outs for easy bearing maintenance
Captive Lock universal head
Slotted pin shackle eliminates fouled lines

Applications:

Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')

Materials:

U.V. Stabilized Acetal sheaves
Acetal ball bearings
Impact and U.V. resistant, fiber reinforced Nylon cheeks
Grade 316 stainless steel load strap and head fitting

Specifications:
Sheave Ø:t40mm(1-9/16")
Max. Rope Ø:t10mm(7/16")
Pin Ø: 5mm(3/16")
M.W.L.:t350kg(770lbs)
B. L.:t1,000kg(2,200lbs)
Weight:t70g(2.5oz)
