Ritchie SS-PR2 SuperSport Compass - Dash Mount - Black [SS-PR2]
Manufacturer Part Number: SS-PR2
UPC #: 010342110015
The SuperSport SS-PR2 is designed primarily for power boats 16' (4.88M) to 35' (10.66M) in length.
SuperSport Compass Features:
- 3-3/4" (9.35cm) CombiDial
- Compensation Module Included (SR-CM2)

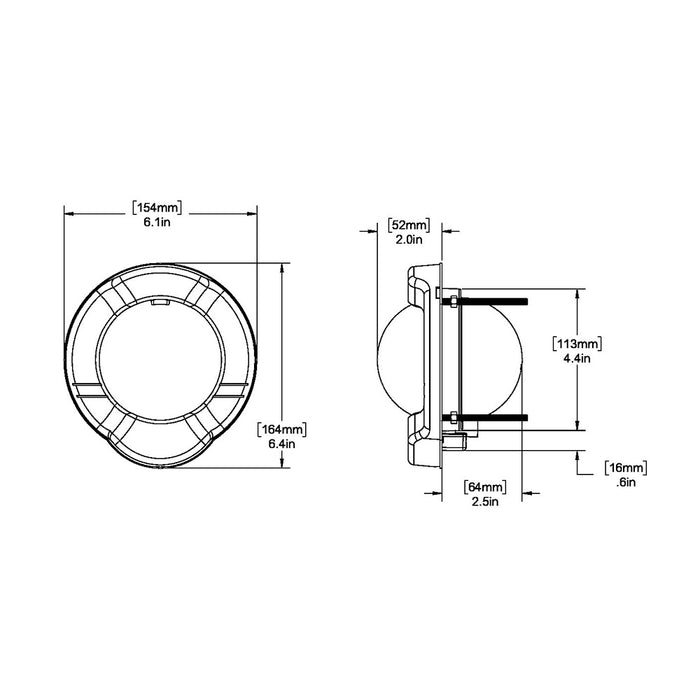

- 4 5/8″ (118 mm) to 4 13/16″ (122 mm) mounting hole
- Vertical Mounting Angle Through 40 Degrees.
- Blue LED Night Lighting
- Adapter plate available to retrofit existing HV-76 and HV-77 installations.
- Adapter Plate: BK-0034-AP
- Protective Front Cover Included (BK-19-C)
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2 lb. (907g)
12/24 Volt lighting is standard, 32 Volt option is available.
- Read: Both
- Mounting Style: Dash
- Lubber Lines: Yes
- Backlight: Yes
- Box Dimensions: 7"H x 8"W x 8"L WT: 2.2 lbs
- UPC: 010342110015
Quick Guide (pdf)
Owner's Manual (pdf)
