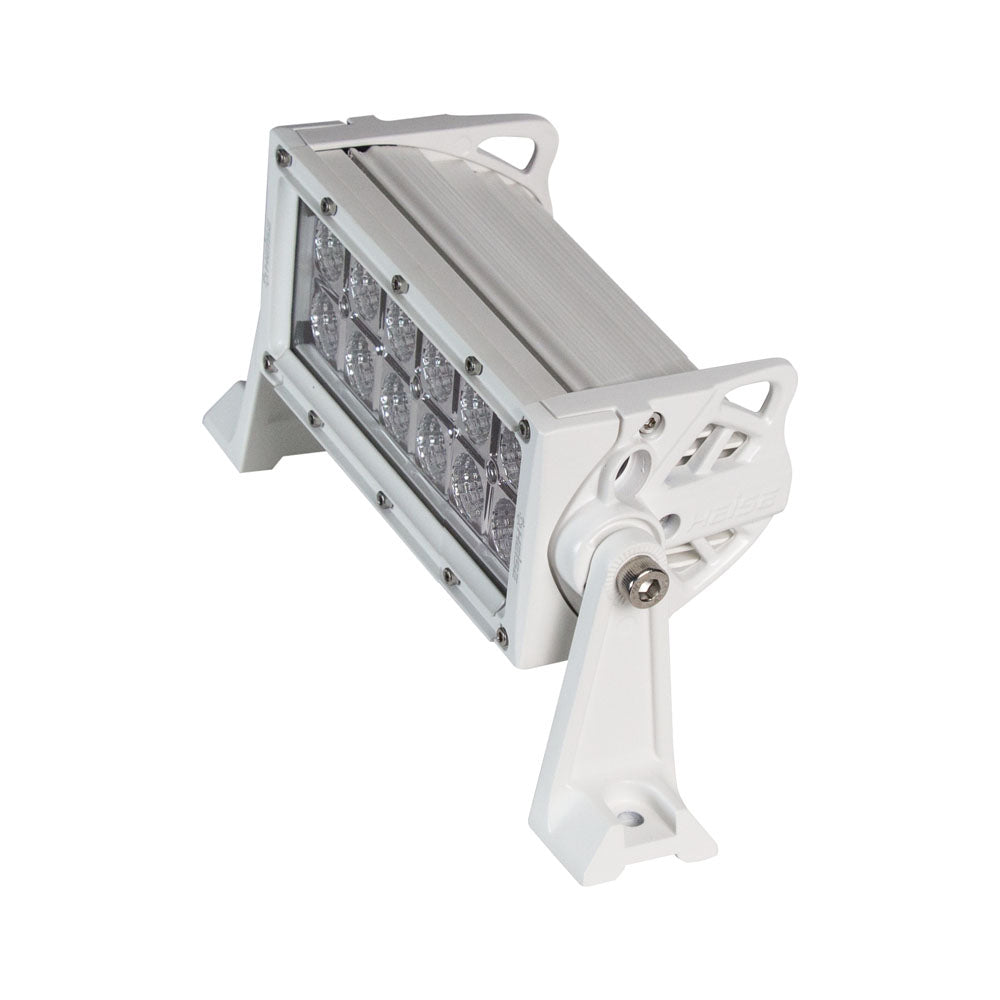

HEISE Dual Row Marine LED Light Bar - 8" [HE-MDR8]

Save 15%
$177.00
$151.00
SKU 69770
Manufacturer Part Number: HE-MDR8
UPC #: 086429312887
Category: Light Bars

Dual Row Marine LED Light Bar - 8"

SPECS

  • Input Voltage: 10-30V DC
  • Wattage: 36W (12-3W CREE LEDs)
  • Raw Lumens: 2880
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Hole Dimensions: Brackets turned inward – 7.25in
  • Brackets turned outward – 9.5in
  • Mounting Bolt Drill – .25in
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: -40degC to +60degC
  • Current Consumption: 1.9 amps at 13.8 volts
  • IP Rating: IP68
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Beam Pattern: Spot-Flood Combo
  • Length (Inches): 8"
  • Housing: White
  • Voltage - Input Range (Volts): 10-30v
  • Box Dimensions: 6"H x 6"W x 13"L WT: 3.4 lbs
  • UPC: 086429312887
