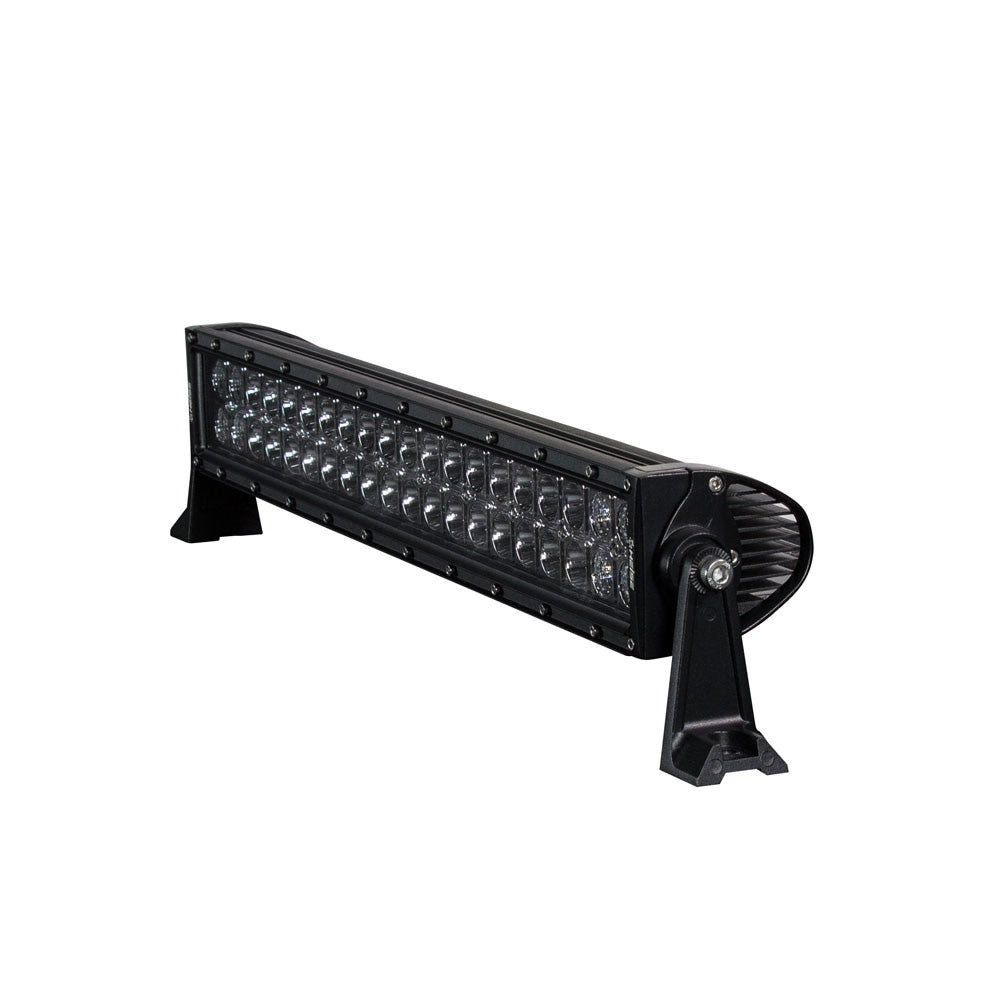

HEISE Dual Row LED Light Bar - 22" [HE-DR22]

Call for Availabity!
$352.99
$316.99
SKU 69721
Manufacturer Part Number: HE-DR22
UPC #: 086429297924
Category: Light Bars

Dual Row LED Light Bar - 22"

SPECS

  • Input Voltage: 10-30V DC
  • Power Consumption: 120W
  • (40-3W CREE LEDs)
  • Raw Lumens: 9600
  • LUX @ 10M: 655
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: Black
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Length of Bar without Mounting Brackets: 22.12"
  • Hole Dimensions:
  • Brackets turned inward - 21.50"
  • Brackets turned outward - 23.75"
  • Mounting Bolt Drill - .25"
  • Height of Light Bar Itself: 3"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: -40°C to +60°C
  • Current Consumption: 6.3 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Beam Pattern: Spot-Flood Combo
  • Length (Inches): 22"
  • Housing: Black
  • Voltage - Input Range (Volts): 10-30v
  • Box Dimensions: 6"H x 7"W x 27"L WT: 8 lbs
  • UPC: 086429297924
