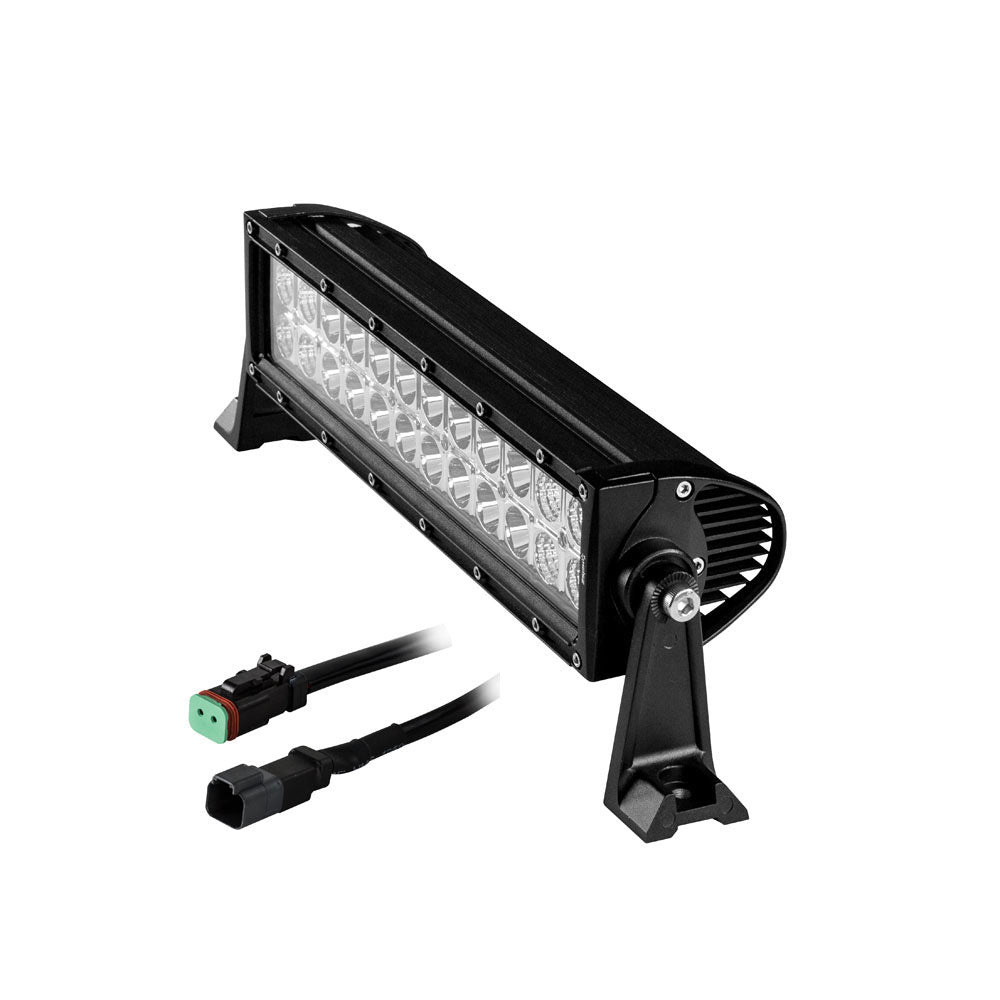

HEISE Dual Row LED Light Bar - 14" [HE-DR14]
Manufacturer Part Number: HE-DR14
UPC #: 086429297955
Category: Light Bars
Dual Row LED Light Bar - 14"
- Input Voltage: 10-30V DC
- Power Consumption: 72W
- (24-3W CREE LEDs)
- Raw Lumens: 5760
- LUX @ 10M: 466
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
- Housing Material: Die-cast Aluminum Housing
- Housing Color: Black
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Length of Bar without Mounting Brackets: 14"
- Hole Dimensions:
- Brackets turned inward - 13.50"
- Brackets turned outward - 14.75"
- Mounting Bolt Drill - .25"
- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
- Operating Temperature: -40°C to +60°C
- Current Consumption: 3.7 amps @ 13.8 volts
- IP Rating: IP68
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Beam Pattern: Spot-Flood Combo
- Length (Inches): 14"
- Housing: Black
- Voltage - Input Range (Volts): 10-30v
- Box Dimensions: 6"H x 7"W x 19"L WT: 5.4 lbs
- UPC: 086429297955
