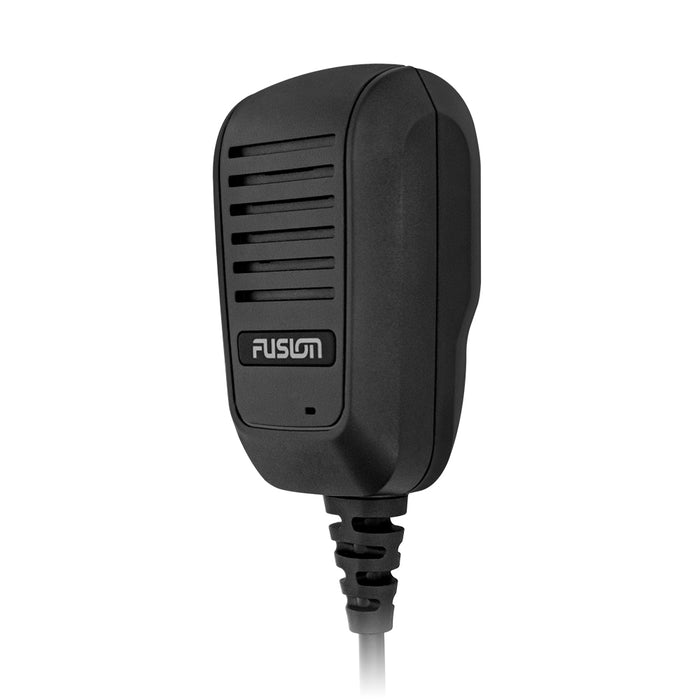

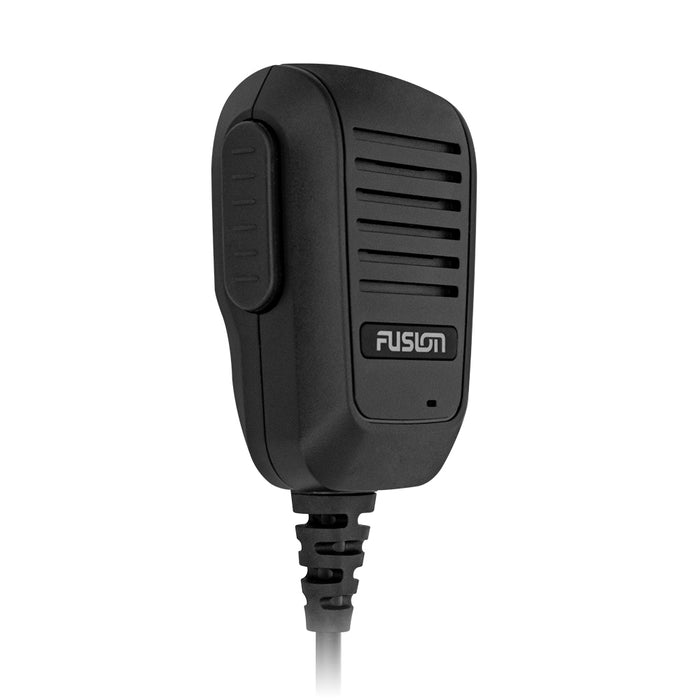

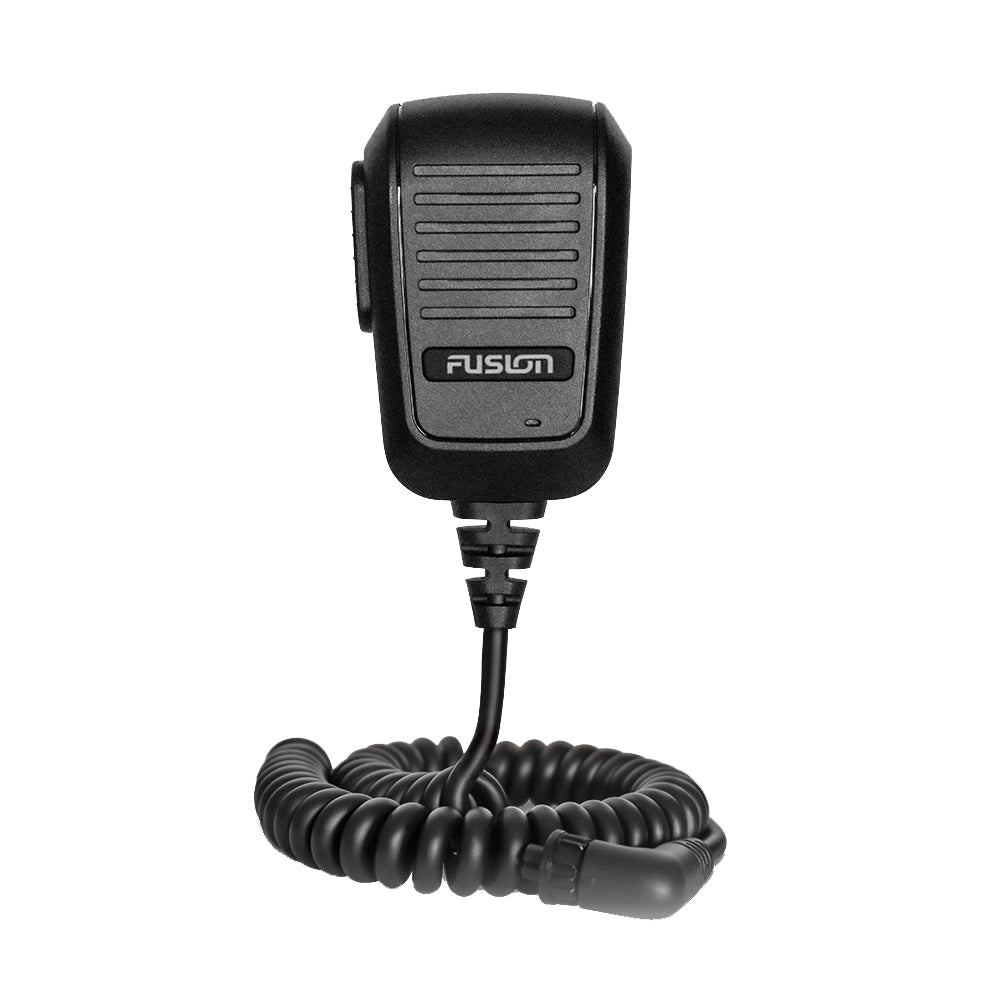

Fusion Marine Handheld Microphone [010-13014-00]

by Fusion
Save 5%
$129.99
$123.99
SKU 87061
Manufacturer Part Number: 010-13014-00
UPC #: 753759262556
Category: Accessories

Marine Handheld Microphone

Fusion's Handheld Microphone is an accessory product designed for compatible Fusion marine stereos with telemute feature, enabling you to make announcements over your Fusion entertainment system.  The Fusion Handheld Microphone features built-in pre-amplification and a compact size that fits easily in the dash space of your helm using the microphone hanger.

Use the Fusion Handheld Microphone to communicate with people in and around your boat. It’s perfect to use for communicating when wakeboarding and water skiing, for social gatherings or boat raft-ups, on tourist boats and in water-hazard situations.

Make announcements over your Fusion entertainment system, even when listening to your favorite song. Simply squeeze the trigger on your Fusion Handheld Microphone, and the audio playback on your compatible Fusion stereo will be paused, allowing for onboard broadcasting.

Enjoy confidence that your Fusion Handheld Microphone will last season after season in the harsh marine and outdoor environment. Meeting IPX7 international standards for water resistance, the Fusion Handheld Microphone is built to last on board.

Compatible Devices:

  • Apollo RA770
  • Apollo RA670
  • Apollo WB670
  • RA210
  • RA70 Series
  • MS-BB100
  • 755 Series
  • 650 Series

Technical Specifications:

  • Frequency Response 100 Hz to 4 kHz
  • Cable Length 23.62" (60cm)
  • Fuse 3A
  • Output Maximum 1 V RMS
  • THD+N (Vo = 1 V RMS, 1 kHz) < 0.1% V RMS
  • Gain +18 ± 0.5 dB
  • Load Impedance 10K ohms
  • Operating Voltage 10.5 to 32 VDC
  • Current Consumption (+14.4 V Supply Voltage) 5 mA
  • Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
  • Ingress Protection Rating IPX7
  • Warranty 1 year

In the Box:

  • Handheld microphone
    • Power-telemute RCA cable
    • Mounting plate with screws
    • Microphone hanger with screws
    • Mounting plate gasket
    • Documentation

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Type: Microphones
  • Box Dimensions: 2"H x 7"W x 9"L WT: 1.1 lbs
  • UPC: 753759262556

Brochure (pdf)
