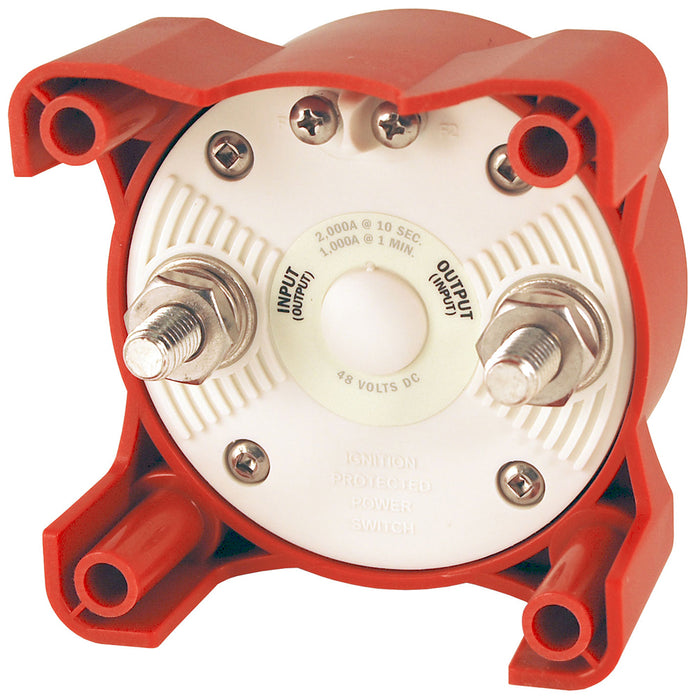

Blue Sea 9004e e-Series Battery Switch Single Circuit ON/OFF w/Alternator Field Disconnect [9004E]

Save 31%
$84.33
$57.99
SKU 13628
Manufacturer Part Number: 9004E
UPC #: 632085900458
Category: Battery Management

9004e e-Series Battery Switch Single Circuit ON/OFF with Alternator Field Disconnect

Features:

  • CE Marked
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Tactile textures indicate knob position by feel only
  • Includes AFD (Alternator Field Disconnect)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Positions: 1
  • AFD: Yes
  • Lockable: No
  • Box Dimensions: 5"H x 7"W x 10"L WT: 0.92 lbs
  • UPC: 632085900458

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
