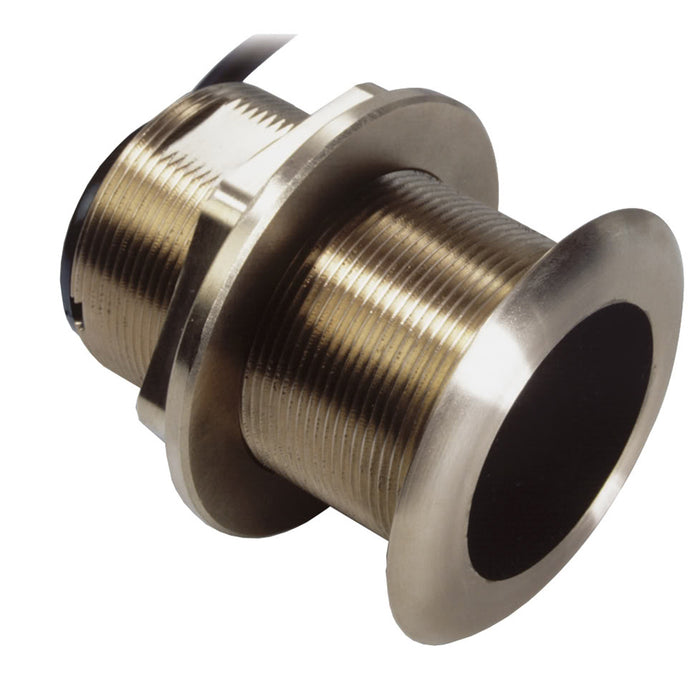

Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12 [B60-12-HB]

by Airmar
$324.99
SKU 65251
Manufacturer Part Number: B60-12-HB
UPC #: 801769003772
Category: Transducers

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12º

The bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.

Features:

  • Engineered for center-console and trailered boats
  • Low-profile protrusion below the hull
  • No affect on your boats running performance
  • Arrow on cap points toward keel when installed
  • Built-in temperature sensor
  • Boat Size: Up to 8M (25')
  • Bronze transducer housing

Specifications:

  • Weight: 1.4 kg (3 lb)
  • Hull Deadrise: Up to 24°
  • Acoustic Window: Urethane

Specifications:

  • Temperature: Yes
  • Mounting Style: Thru-Hull
  • Pins: 7
  • Box Dimensions: 4"H x 8"W x 11"L WT: 3.55 lbs
  • UPC: 801769003772

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
