Trident Marine 4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [290V4000-S/S]

Save 30%
$266.29
$185.99
SKU 99749
Manufacturer Part Number: 290V4000-S/S
UPC #: 704917002071
Category: Fuel Systems

4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.

Features:

  • Four stainless steel t-bolt clamps
  • Very high temp silicone/EDPM blend rubber - molded
  • This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
  • Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous

Construction:

  • Color: Blue
  • Temperature Range: up to 350°F (177°C)

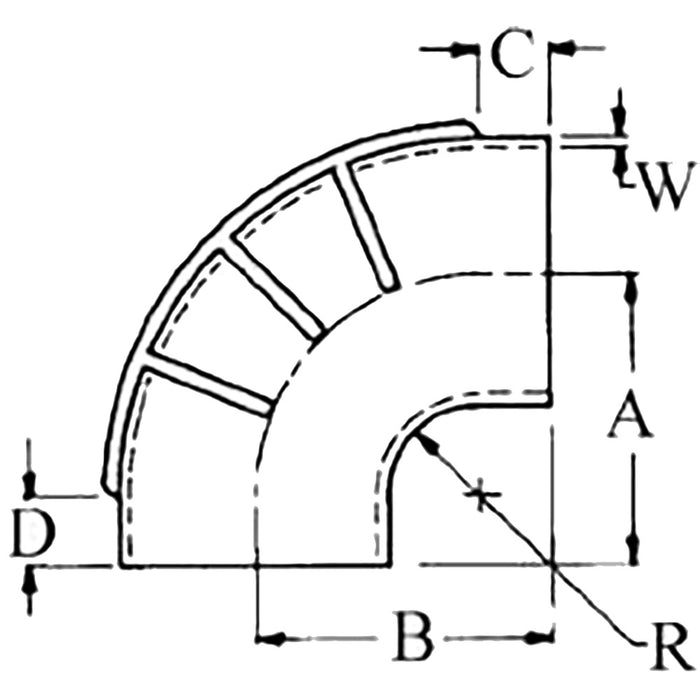

Specifications:

  • Inner Diameter: (inch) 4” / (mm) 101.6
  • A: (inch) 5.75” / (mm) 146
  • B: (inch) 5.75” / (mm) 146
  • C: (inch) 1.75” / (mm) 44.4
  • D: (inch) 1.50" / (mm) 38.1
  • R: (inch) 2” / (mm) 50.8
  • W: (inch) 0.25" / (mm) 6.4
  • Elbow Degree: 90 degrees

Quick Guide (pdf)
