Octopus Type S Straight Shaft f/Mounting Behind the Dash f/Mechanical Drive Systems - Includes 90 Degree Bezel Kit [OCTAFMDMSW]
Manufacturer Part Number: OCTAFMDMSW
UPC #: 628309135850

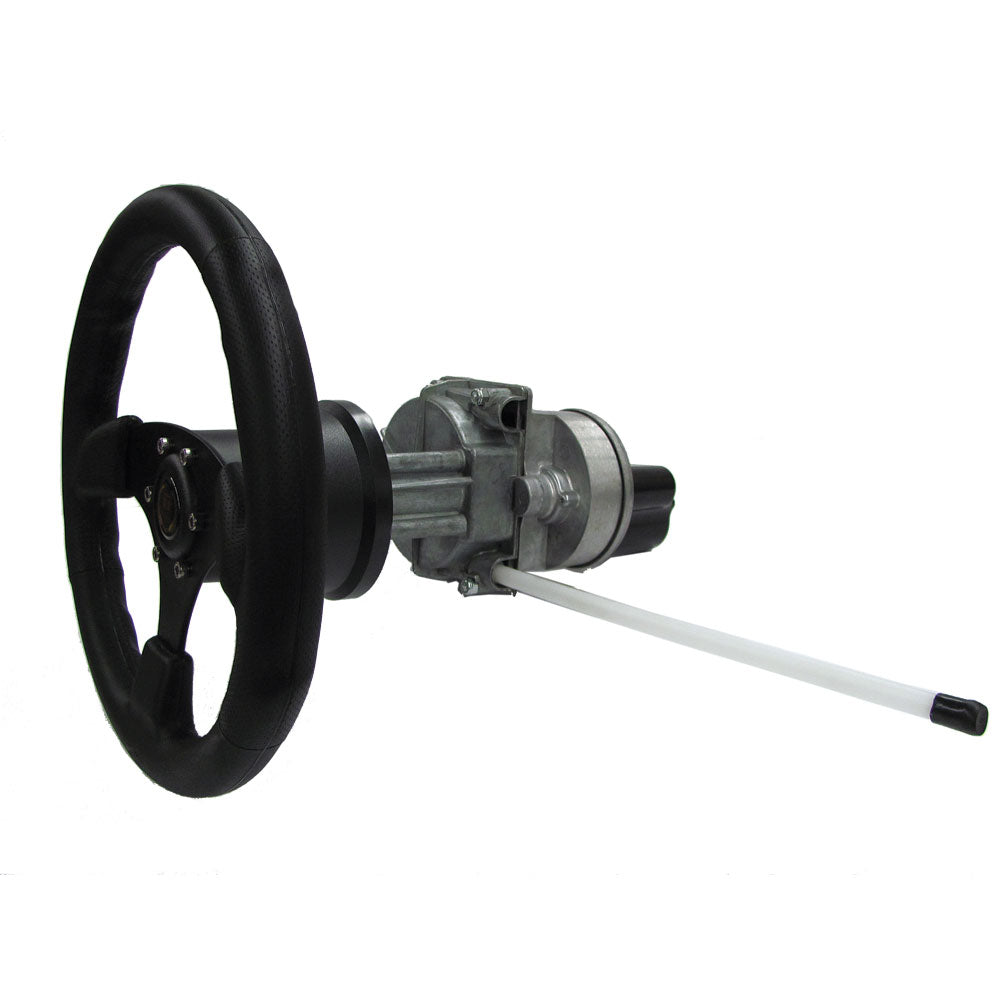

Type S - Standard Straight Shaft f/Mounting Behind the Dash
The Straight shaft drive unit replaces the manual drive used on cable steered boats and is mounted directly behind the dash. The drive is directly compatible with the Morse 290 steering helm but comes with its own bezel kit and can be retrofitted in most installations using the cable and steering wheel from the manual steering helm on the boat.
This drive can be mounted in 2 ways, either at 90° to the dashboard or at 20° to the dashboard. Spacer Kits are also available to reduce the space required behind the dashboard.
- Retro Fits to Most Cable Steered Vessel
- Easily Adaptable to S1 Autopilots
- The Only Viable Option When Adding an Autopilot to a Cable Steered Vessel
- Affordable, Reliable, Seamless-behind the Dash Installation
- 2 Year Limited Warranty
- Type: Parts
- Box Dimensions: 6"H x 8"W x 15"L WT: 12.3 lbs
- UPC: 628309135850
Owner's Manual (pdf)
