i2Systems LightLink Marine Dimming Module [LL-101]

Save 28%
$122.00
$87.99
SKU 39090
Manufacturer Part Number: LL-101
Category: Accessories

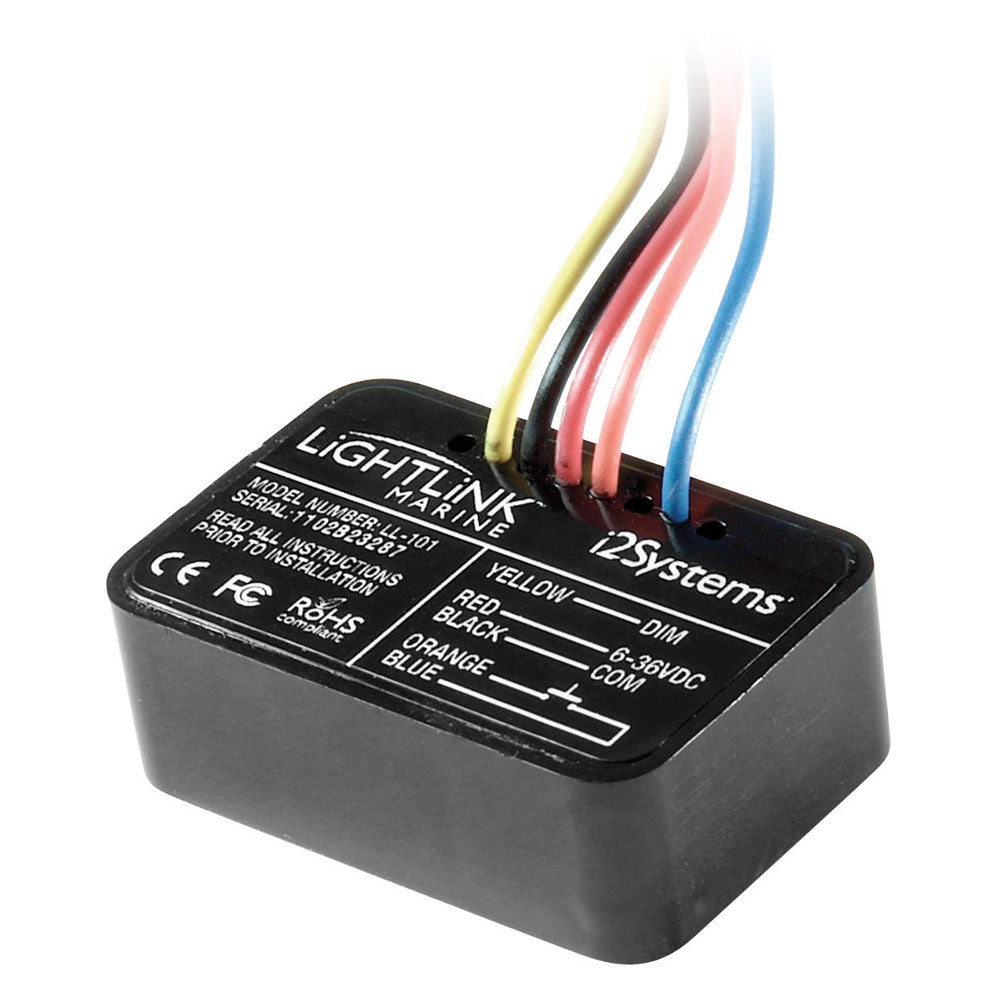

LightLink LL-101 Marine Dimming Module
Part #: LL-101

Operation is simple! Press and hold the momentary switch to initiate dimming cycle. Dimming cycle continues to dim as long as switch is engaged, ranging from 100% to approximately 5% intensity holding 2 seconds at each position before dimming the opposite direction. Briefly press and release momentary switch for on/off operation.

Specifications:

  • Input Voltage: 6-36 Volt DC
  • Dimensions: Width: 1.5" x Height: 0.5" x Depth: 1.0"


Features:
  • Compatible with i2Systems Apeiron, Ember and Profile lights
  • Dimming control via a momentary switch or contact
  • Small size, encapsulated, fits into most switch boxes


The LL-101 means that no matter what level you have the lights at when you turn them off, they will resume at full brightness when turned back on.

The LightLink LL-101 is capable of dimming and controlling up to
(20) i2Systems Fixtures, including:

  • Apeiron A1110
  • Apeiron A2162
  • Ember E1150
  • Profile P1100


(20') i2Systems
  • S-Line S1200

Specifications:

  • Type: Parts
  • Box Dimensions: 2"H x 4"W x 4"L WT: 0.4 lbs

Quick Guide (pdf)
