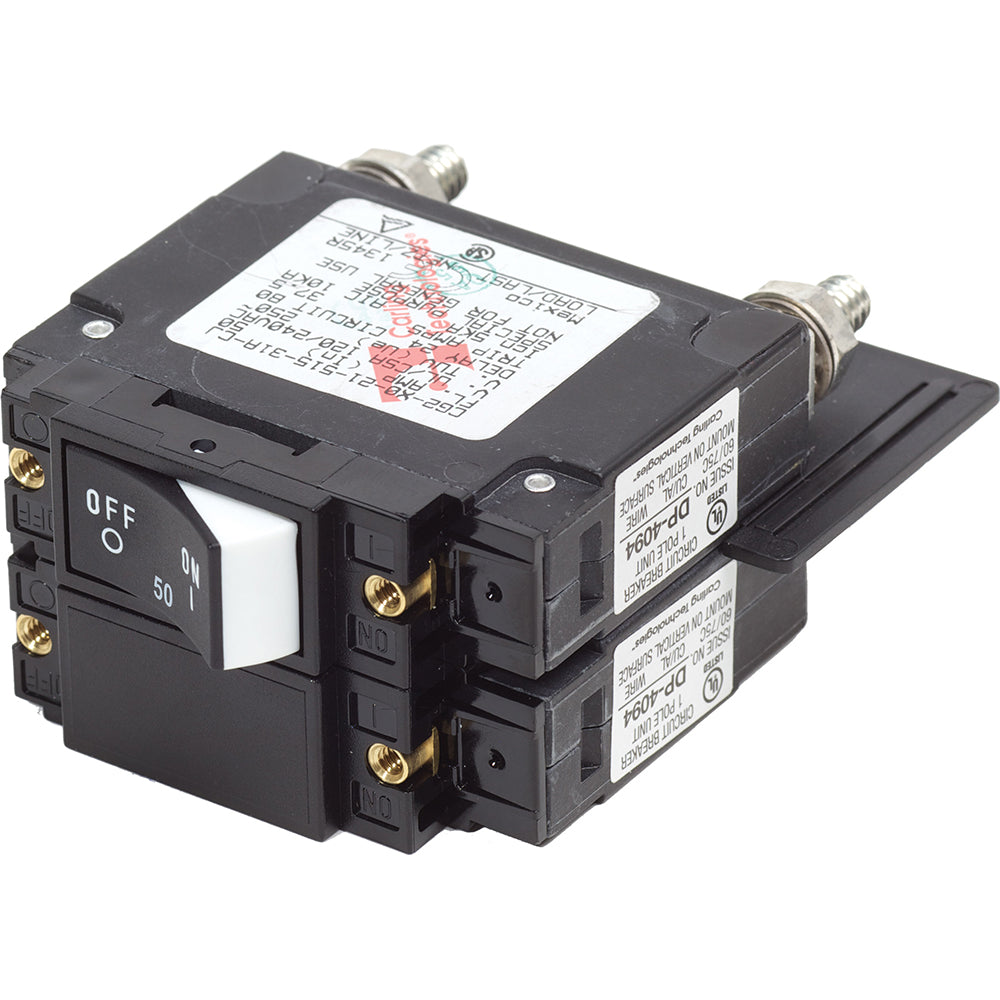

Blue Sea 7467 UL-489 Circuit Breaker - 50A Raised Rocker [7467]

Call for Availabity!
$84.33
$58.99
SKU 69609
Manufacturer Part Number: 7467
UPC #: 632085074678
Category: Circuit Breakers

7467 UL-489 Circuit Breaker - 50A Raised Rocker

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)

Specifications:

  • Amperage: 50A AC
  • Actuator Style: Raised Rocker
  • Poles: 2
  • Maximum Voltage: 250V AC
  • Circuit Breaker Type: Magnetic Hydraulic—Trip free
  • Terminal Stud Torque: 35 in-lb (3.95 Nm)
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 SS
  • Mounting Screw Torque: 8 in-lb (0.9 Nm)
  • Switching Cycles: 10000
  • Weight: 0.23lb (0.1 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 50a
  • Box Dimensions: 2"H x 4"W x 8"L WT: 0.6 lbs
  • UPC: 632085074678

Brochure (pdf)
