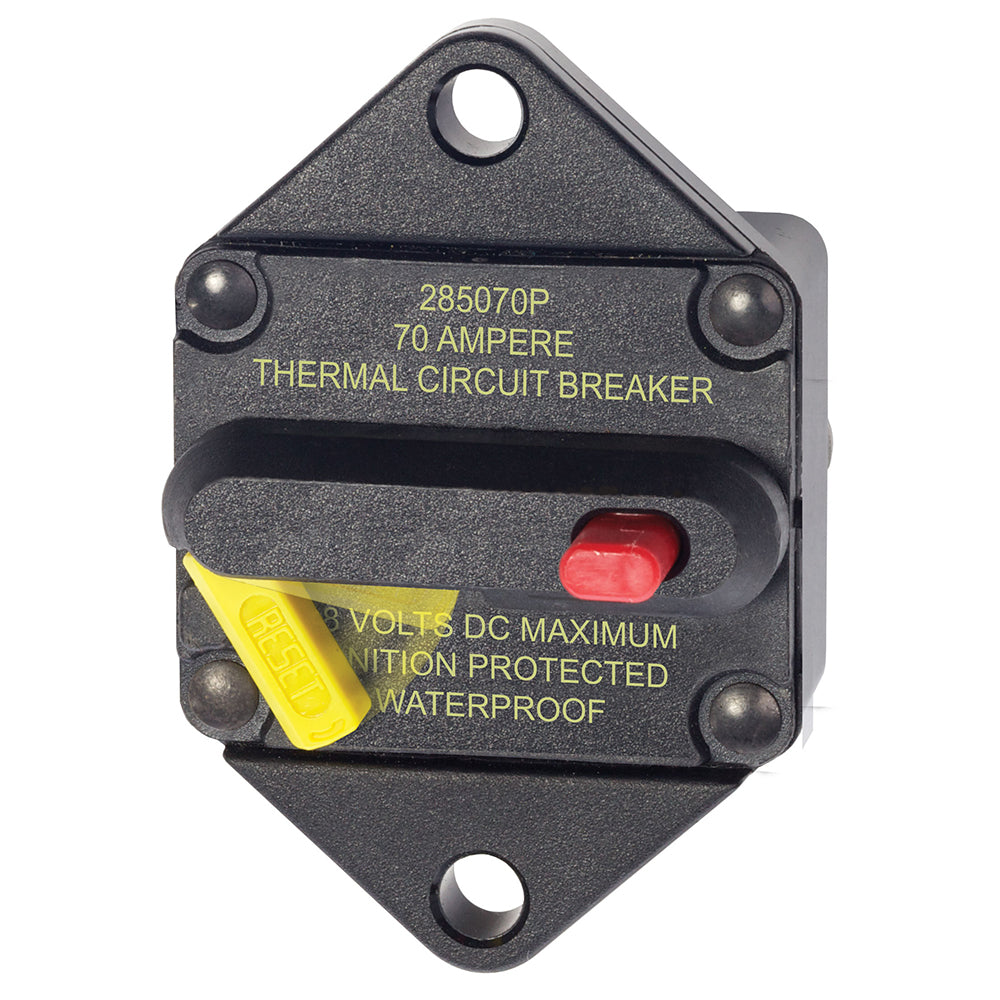

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series [7085]

Name: Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series [7085]
Brand: Blue Sea Systems
SKU: 40613
Price: 45.99 USD
Availability: InStock

by Blue Sea Systems

Save 30%

$65.51

$45.99

SKU 40613
Manufacturer Part Number: 7085
UPC #: 632085070854
Category: Circuit Breakers

Quantity

285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085

Drop in replacement for 185-Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected - Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit
"Trip Free" - cannot be held closed after trip

* Do not use for direct control of high inrush loads such as motor starting.

Specifications

Interrupt Rating t3,000A @ 48V DC*
Maximum Voltage Rating t48 Volts DC
Operating Temperature Range t-40°C to 85°C
Circuit Breaker Type tThermally Responsive Bi-metal blade
Circuit Breaker Class tType III - Switchable / Manual Reset - Trip Free
Terminal Stud Size tM6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque t50 in-lb
Mounting Holes tAccept 1/4" (M6) screw
Weight Lb (Kg) t0.33 lb (0.15 kg)

* AIC ratings achieved using SAE J1625
