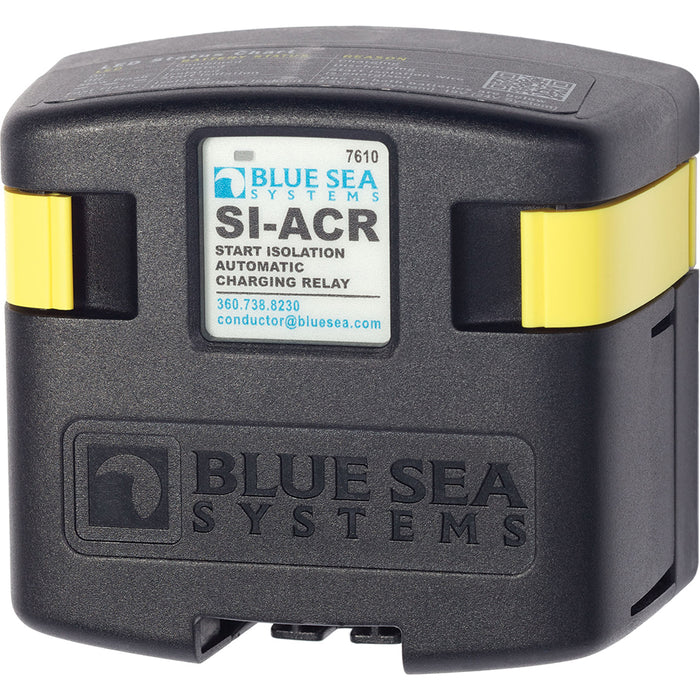

Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay [7610]

Call for Availabity!
$146.07
$100.99
SKU 30594
Manufacturer Part Number: 7610
UPC #: 632085076108
Category: Battery Management

7610

120 Amp SI-Series Automatic Charging Relay


  • Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics
  • Automatically combines battery banks during the charging cycle and isolates under discharge
  • 12/24 Volt auto ranging voltage input
  • Waterproof rated IP67 - temporary immersion for 30 minutes
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Remote LED output indicates relay state away from ACR
  • LED light indicates when batteries are combined
  • LED blinks in undervoltage lockout and starting lockout
  • Supports high-output alternators up to 120 Amperes
  • Included with the ADD A BATTERY Dual Circuit System
  • Automatically combines battery banks during the charging cycle and isolates under discharge
  • Ignition protected - safe for installation aboard gasoline-powered boats
  • Activates from any charging source - alternators, battery chargers, or solar panels
  • Hermetically sealed contacts / vaporproof
  • Side and bottom knockouts for power cable connections
  • Clip-on cover protects and insulates terminal connections
  • Tin-plated copper studs for maximum corrosion resistance
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • 1/4" x 0.031" male quick connect terminals for ground and remote LED and starting interrupt

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Owner's Manual (pdf)
